Dawntech Eco Professional 2 + Digital Compass

207.95

Dawntech Eco Professional 2 + Digital Compass

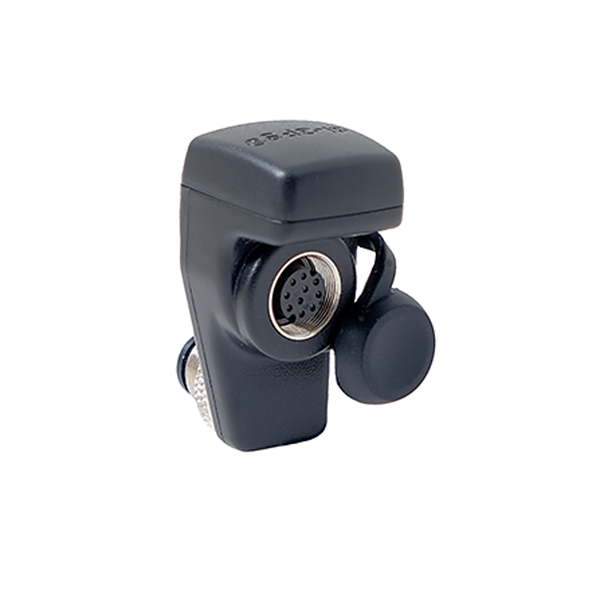

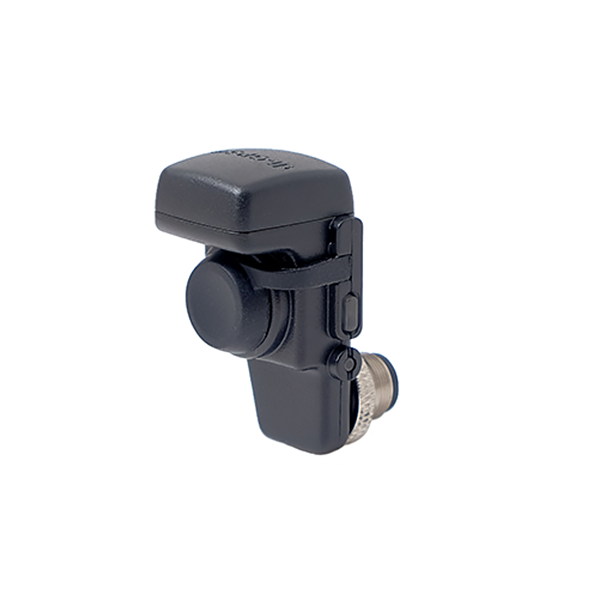

De Dawntech ECO ProFessional 2 = Digital Compass monteert u, middels een schroefverbinding, rechtstreeks op de 10 pin aansluiting van uw Nikon camera, het is een mooie compact unit, beschikt over een hoge gevoeligheid en het gewicht is 18gr.

( Nikon D5, D4, D4S, D3, D3S, D3X, D500, D850, D810A, D810, D800, D800E, D700, D300, D300S, D2XS, D2X, D2HS, D200 & Fujifilm S5 Pro )

Specificatie’s

General
Chipset MTK 3339
Frequency L1, 1575.42 MHz C/A code 1.023 MHz chip rate
Channels 66 channel all-in-view tracking
Sensitivity -148dBm (Cold Start), -165 dBm tracking
Position Accuracy (Open Sky)
w/o aid 10 meters, 2D RMS
DGPS SBAS, WAAS, EGNOS, MSAS, GAGAN 5 meters, 2D RMS
Acquisition Time (Open Sky)
Reacquisition Less then 1 sec., average
Hot start 1 sec., average
Warm start 34 sec., average
Cold start 35 sec., average
Digital Compass
Magnetic Heading Accuracy ±5° at zero pitch/roll (95% probability) ~3 seconds to update the correct heading in camera after steady
Landscape Tilt compensated
Portrait Heading information not applicable in portrait orientation
Dynamic Conditions
Altitude: Maximum 18,000m
Velocity Maximum 515m/s
Acceleration: Maximum 4G
Power
Voltage +6V Supply from DSLR Camera
Current 19 mA aveage
Others
Interface Direct attached to 10 pin remote terminal
Dimension 42mm x 22mm x 21mm
Operating Temperature -10 to +45 Degrees Celsius
Operating Humidity 5% to 95%, No Condensing
SKU PF-2DC Category

5 op voorraad
